Wheel weights
Description
Ballasting by the wheels allows the coupling of other equipments at the rear of the tractor.
Harmonises perfectly with the tractor, makes it appear better finish.
Advantages
- A range of different weights so you will always find the perfect solution
- Cast iron weights, robust, resistant and durable
- Many possible combinations
Technical characteristics
Dimensions
| Model | External Ø (mm) | Internal Ø (mm) | Width (mm) |
|---|---|---|---|
| 50kg | 579 | 395 | 92 |
| 80kg | 630 | 330 | 50 |
| 300kg | 800 | 395 | 140 |

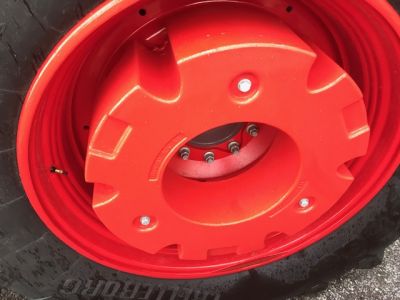

| 600kg | 780 | 400 | 256 |
| 1000kg | 900 | 400 | 316 |

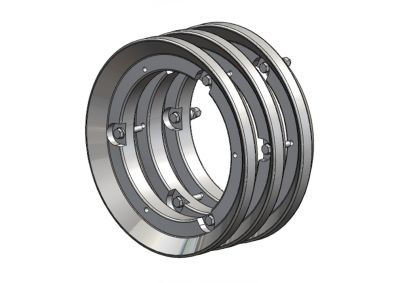

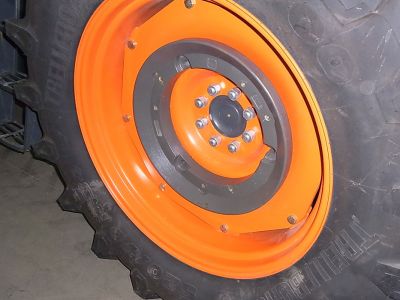

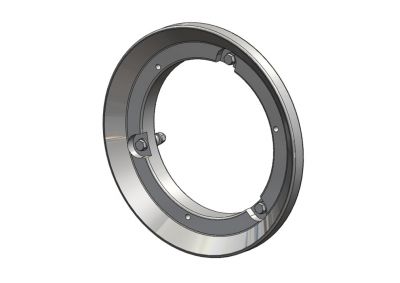

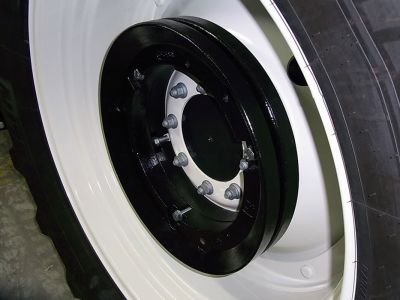

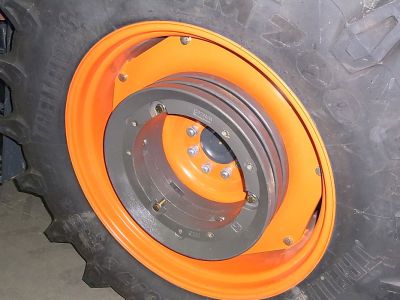

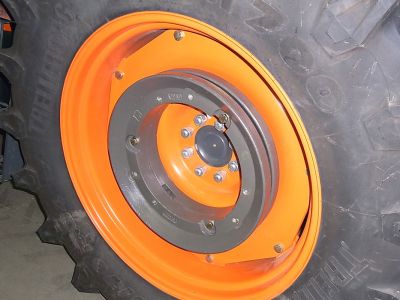

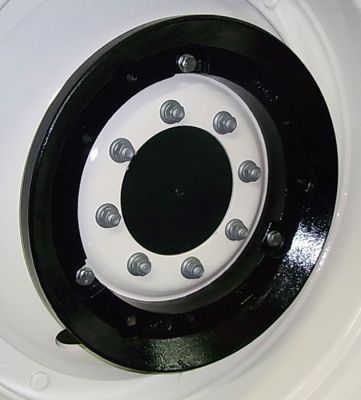

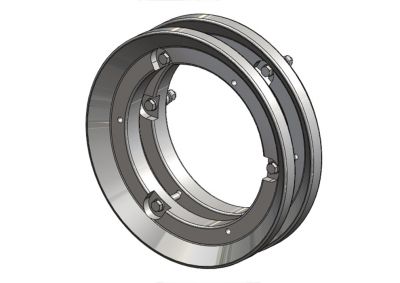

50kg
- 3 drilling Ø430 centre distance
- to be mounted directly on the rim
- up to 6 x 50kg weights per wheel

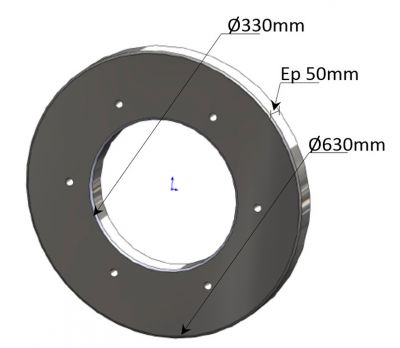

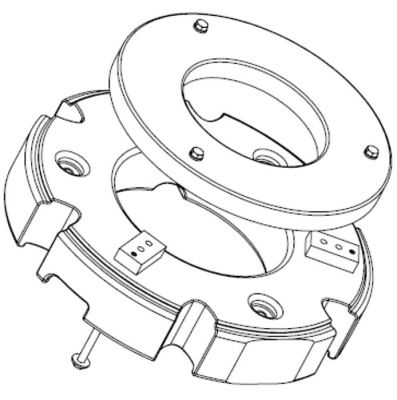

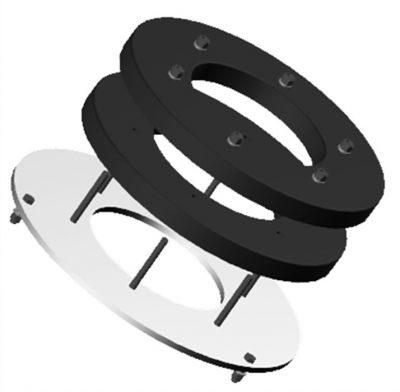

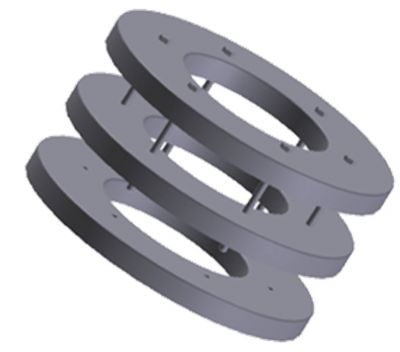

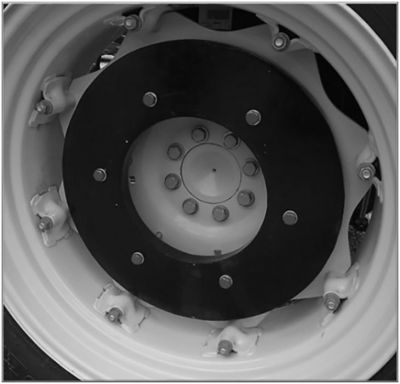

80kg
- Drilling according to your drawing
- to be mounted directly on the rim
- up to 4 x 80kg weights per wheel

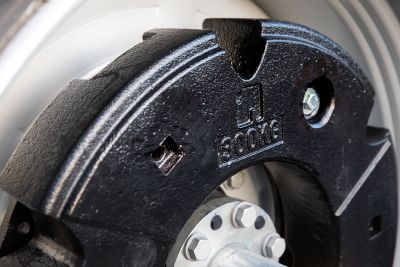

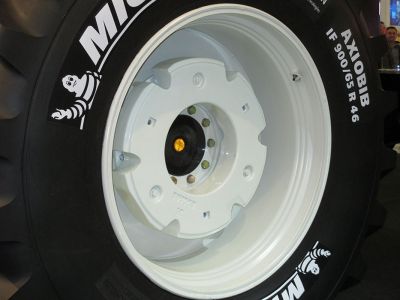

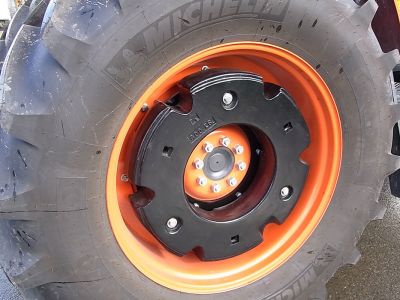

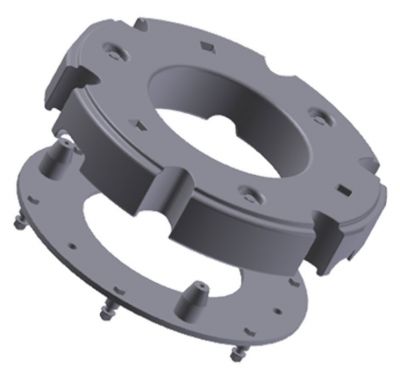

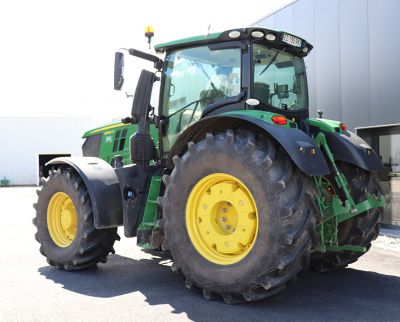

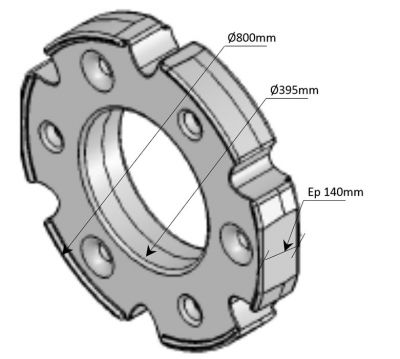

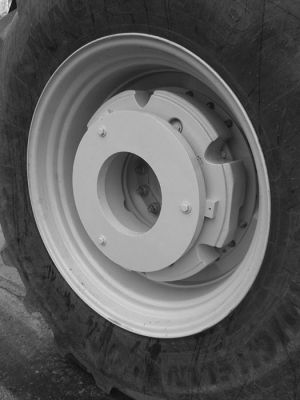

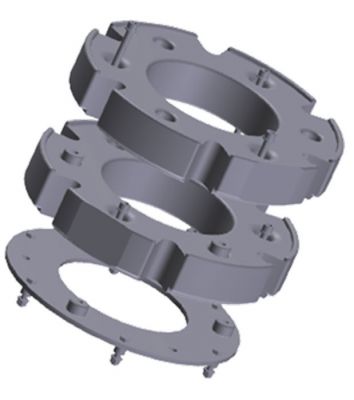

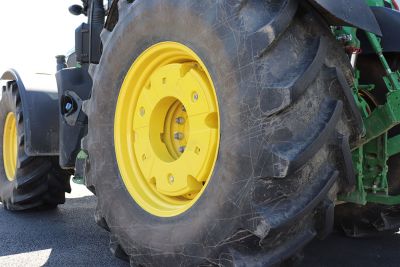

300kg
- Mounting plate required
- up to 2 x 300kg weights per wheel
Tractor-compatible
